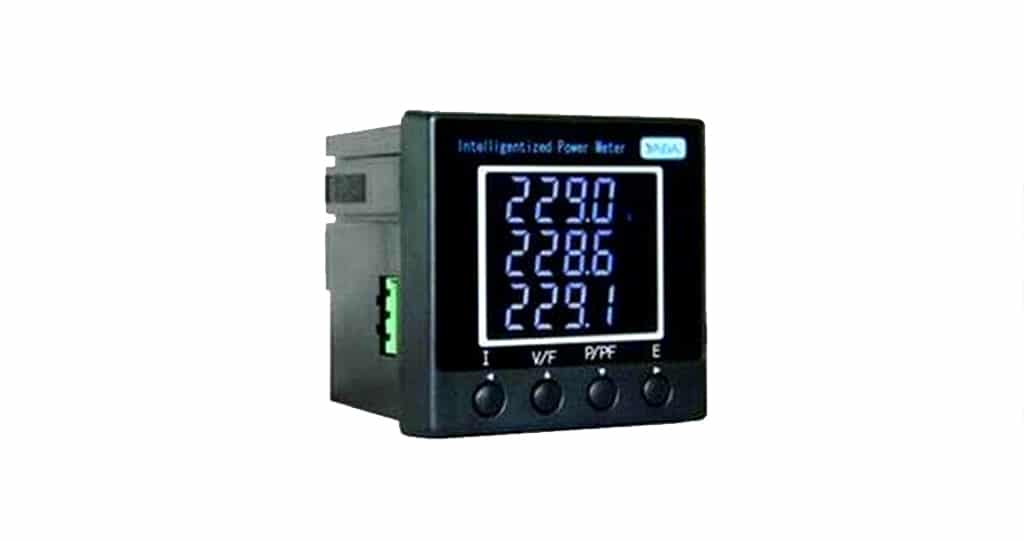

Digital Power Meter YADA MODEL YD2040

power meter, LCD display, RS-485 port, Modbus -RTU protocol, Ce certificate.

Introduction

YD2040 is a LCD display power analyzer meter, measuing and displaying all the measured parameters in one circuit and computing four quadrants energy This model can work in wide temperature range.

Measurement

Voltage (Ph-Ph/Ph-N) | Current (Ph-Ph/Ph-N) | Active Power | Reactive Power | Apparent Power | Frequency | Power Factor | Neutral Current

Product Details:

Place of Origin : Guangdong, China (Mainland)
Brand Name : YADA
Model Number : YD2040
Measuring Current Range : 0~6A
Measuring Voltage Range : 30~600V
Frequency : 45-65Hz
Accuracy Class : 0.2
Operating Temperature : -25~55
Dimensions : 72*72mm
certificate : CE
Detailed Product Description

Computation Import active energy | reactive energy
Export active energy | reactive energy
Monitor LCD Display, 3 displays; 4 operation keys
Communication RS-485 port,ModBus-RTU protocol; 32(128) networking
System 3P4W | 3P4W BAL | 3P3W | 3P3W BAL | 1P2W | 1P3W
Programmable 3-5 daysMeasuring System: 3P4W/3P3W etc.
Transformation :RatioPT; CT
Comms.Add. (1-247);Baud rate (1200-19200);Parity bit (N/E/O)
RTC:Year/Month/Day/Hour/Minute/Second
Energy:Reset
Dimension Mounting panel: 72*72mm
Thickness:13mm
Depth:60mm
Mounting Panel Mounting Hole:92x92mm
Power Supply (AC/DC) AC85-265V or DC85 330V (Standard)
Power Consumption < 4VA
Working Conditions Temp.:-15-55, Humid: 20-95% (without condensation)
