Introduction

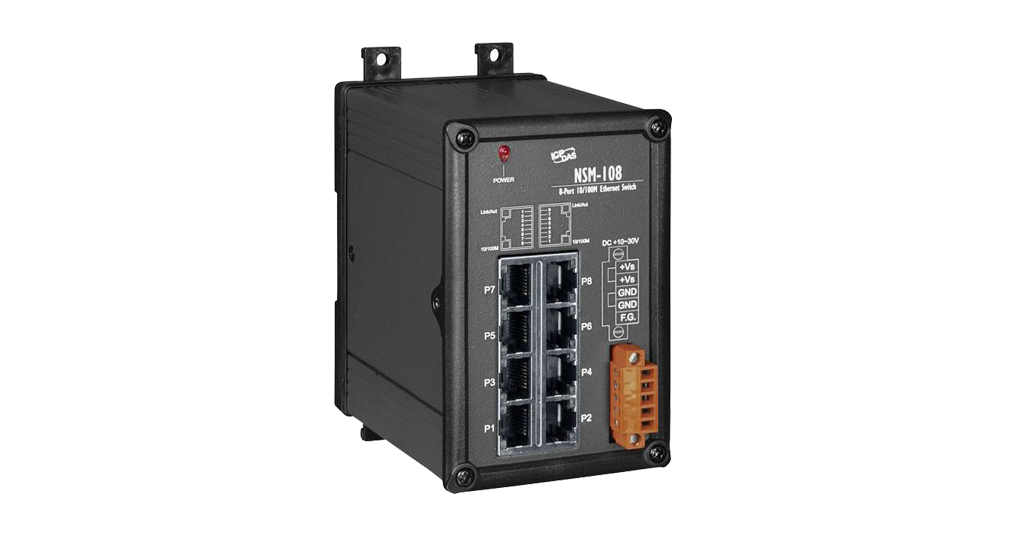

The NS-208/NSM-108 has 8 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function.

All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly. The NS-208/NSM-108 supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety.

The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting. Port connectors are shielded RJ-45.

FEATURES

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Supports operating temperatures from -40 °C ~ +75 °C
  • Each port supports both 10/100 Mbps speed auto negotiation
  • 2 Gbps high performance memory bandwidth
  • Supports +10 ~ +30 VDC power input
  • DIN-Rail Mounting
