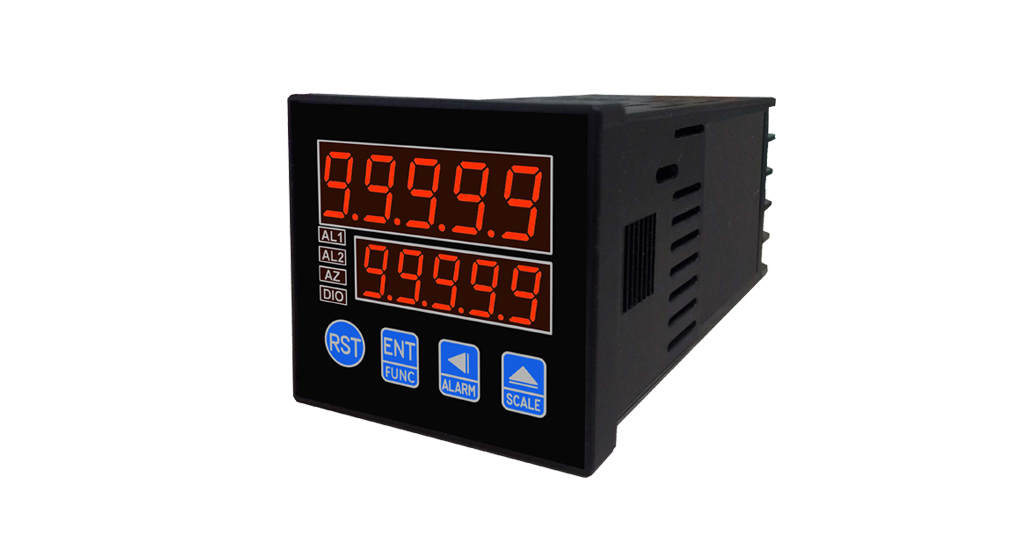

MC48

5 DIGIT HIGH SPEED MICROPROCESS COUNTER

MC48

  • Accepts input rates up to 50KHz
  • Accept input rates 50 or 50000 CPS can modified
  • Seven counting modes Front/after edge-up,Front/after edge-down,up/down,direct-up/down,
  • quadrature-up/down can be modified
  • Quadrature sensing up to 4 times resolution
  • Input scaling multiplied 0.0001 to 9.9999 can be modified
  • Seven output mode N/F/R/Q/C/P/K can be modified
  • Two alarm function (optional)
  • 16 bit DAC analog output function (optional)
  • Digit RS-485 interface function (optional)
  • Protection class NEMA4/IP65

  Download : AXE- MC48-EN.pdf
