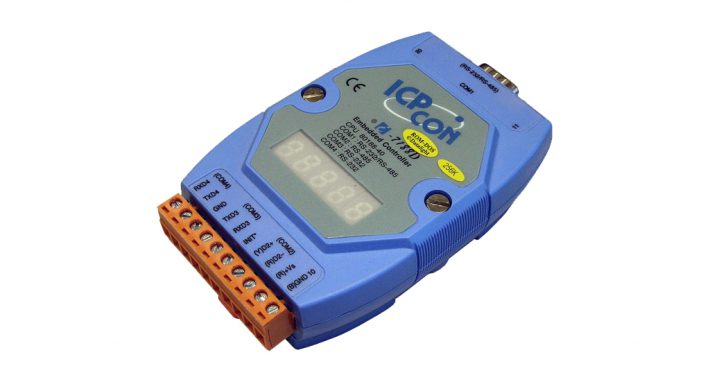

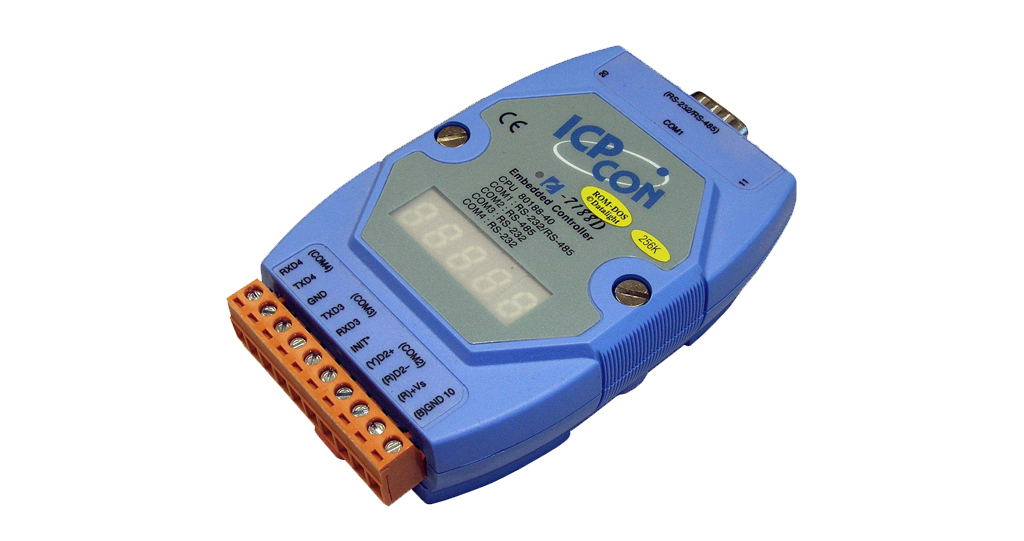

I-7188/I-7188D

Embedded Controller

Introduction

The I-7188(D) is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188(D) controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.

The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188(D) controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.

Depending on the type of embedded firmware programs that are being developed, the I-7188(D) can be used as a single versatile controller.

SPECIFICATIONS


CPU 80188 (40MHz)
SRAM 256K Bytes
Flash 512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles.
EEPROM 2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles
NVRAM 31 Bytes (battery backup, data valid up to 10 year)
RTC (real time clock) Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number No
Build-in Watchdog Timer Yes
