FRENIC-ACE-H (FRN-E2H)

Inverter

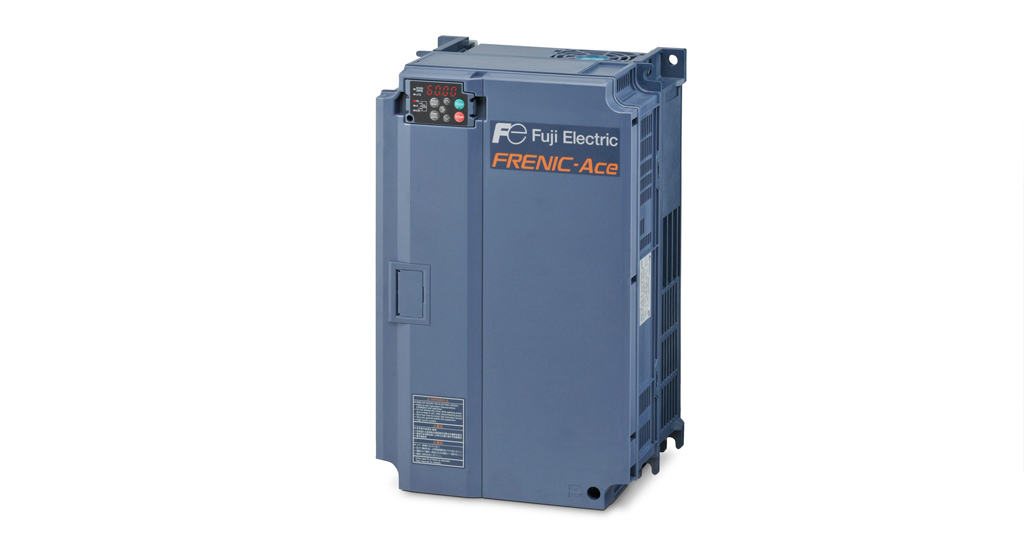

FRENIC-Ace-H

FRENIC-Ace-H offers optimum capability in terms of energy saving for HVAC and water pumping applications.

Its user friendliness, network compatibility, and long-term reliability are beneficial for long-run performance of systems.

Furthermore, with using customized logic, FRENIC-Ace-H enables to tailor its functionalities for specific requirements at each application.

Features

  • Quadruple Rating: only in 400 V
  • System protection functions:
    Slow flow rate / check valve protection / initial acceleration time / over pressure / PID alarms / wire break detection
  • Water supply and drainage system function:
    Dynamic torque vector control / cascade control (up to 4) / PID control (2 PID) / mutual operation (up to 4) / floating method / fire mode / starting mode (auto search) / auto energy saving / customizable logic, Mini PLC (200 steps) / automatic deceleration / password function
  • STO functional safety function as standard:
    STO SIL 3, Cat 3, PL e
  • Built-in EMC filter, category C2/C3. *For 200V >30 A: without built-in EMC filter
  • PM synchronous motor drive, PM sensorless vector control
  • Comprehensive communication support:
    BACnet communication protocol as standard
    RS485 / Modbus RTU / BACnet MS/TP / Metasys N2
  • Keypad built-in / multifunctional keypad as an option
    Support for 19 languages + 1 customizable language

Option – Fieldbus options:

  • DeviceNet (OPC-DEV)
  • RS 485 (OPC-E2-RS)
  • PROFIBUS-DP (OPC-PDP3)
  • CANopen (OPC-COP2)
  • CC-Link (OPC-CCL)
  • Lonworks
  • BACNet/IP / Ethernet/IP / Profinet I/O
  • Relay output
  • Analog I/O expansion
  • Digital I/O expansion
  • Thermistor Pt100 input card
