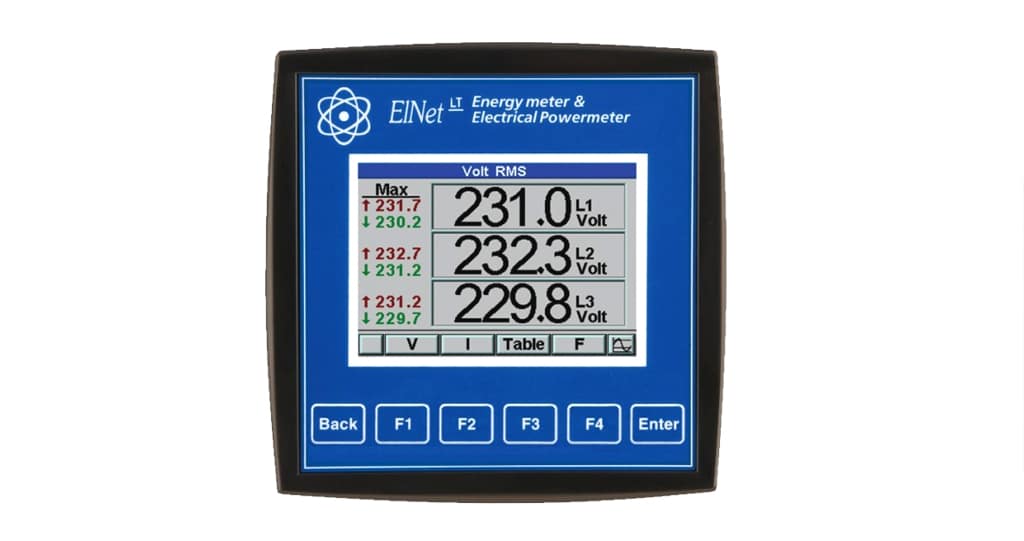

ElNet LT Energy & Power analyzer

Powermeter with color graphic display for all electrical measurements and harmonics, with TCP/IP and RS485 communication (ModBus and Bacnet), panel mounted 96X96 mm.


  • Multilingual support.
  • Up to One year of energy data logging.
  • Displays up to 64th Harmonic in Waveform or Graphic.
  • 1600 samples per cycle.
  • Accuracy 0.2 %.
  • Accuracy 0.1% with special calibration, that can be ordered.
  • Build in T.O.U. Energy meter.
  • RS485 Communication Port (MODBUS, Bacnet MS/TP).
  • State of the art Graphic LCD
  • Modern 320 x 240 LCD display.
  • Displays of Waveform and Bar graph.
  • Simple installation- Panel mounted. Dimension: 96×96 mm.
  • Flash memory stores 6 months of energy.
  • Option: TCP/IP communication port + WEB server
  • BacNet TCP/IP
